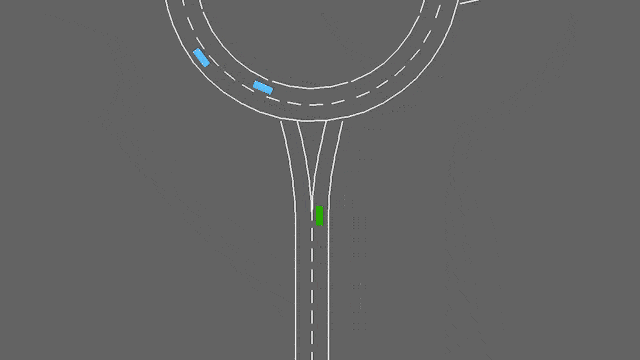

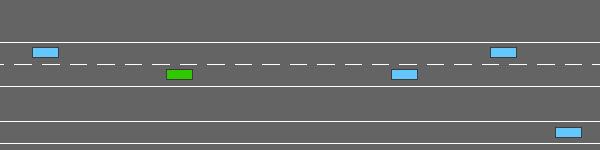

Insertion lane

• Under perfect perception & control,
• Human behaviours are unknown.

• How to smoothly interact with other agents?
• Can we guarantee safety under uncertainty?

• Model-based
  1. Planning Fast
  2. Preparing for the Worst
• Model-free
  1. Considering Social Interactions
  2. Acting under Adjustable Constraints

Model-based

1. Planning fast

• (ECML 2019),
• (ACML 2020)

Model-based

2. Preparing for the Worst

• (CDC 2019),
• (CDC 2020),
• (NeurIPS 2020)

$$\dot{x}(t) = \color{lightskyblue}{f}(\overset{state}{x(t)}, \overset{action}{u(t)}) + \overset{disturbance}{\omega(t)}$$

1. 1. Learn a model of the dynamics


   $\min_{\color{orange}{\theta}} \mathcal{L}(\color{orange}{f_{\theta}}, \color{lightskyblue}{f})$

2. We want $$\max_{\color{limegreen}{\pi}} \expectedvalue\left[ \sum_{t}\gamma^t \overset{reward}{R(x(t))}\middle| \color{lightskyblue}{f}, \color{limegreen}{\overset{policy}{\pi}} \right]$$

   2. Use it to plan $$\max_{\color{limegreen}{\pi}} \expectedvalue\left[ \sum_{t}\gamma^t \overset{reward}{R(x(t))}\middle| \color{orange}{f_{\theta}}, \color{limegreen}{\overset{policy}{\pi}} \right]$$

Ignores the model bias$$\color{orange}{f_{\theta}} \neq \color{lightskyblue}{f}$$

• But it might get better as $\color{orange}{f_{\theta}} \to \color{lightskyblue}{f}$ ?
• No: constrained optimization

with oracle $\color{lightskyblue}{f}$

with model $\color{orange}{f_{\theta}}$

1. Build a confidence region $\color{crimson}{\mathcal{C}_{N,\delta}}$ for the dynamics \[\mathbb{P}\left[\color{orange}{\theta}\in\color{crimson}{\mathcal{C}_{N,\delta}}\right]\geq 1-\delta\]
2. Plan robustly against the worst case outcome \[\color{limegreen}{\sup_{u}} \underbrace{\color{crimson}{\inf_{\substack{\theta \in \mathcal{C}_{N,\delta}\\ \omega\in[\underline\omega,\overline\omega]}}} \expectedvalue \left[\sum_{n=0}^\infty \gamma^n R(x(t_n)) \middle| \color{limegreen}{u}, \color{crimson}{f_{\theta}}, \color{crimson}{\omega}\right]}_{\color{crimson}{V^r(u)}}\]

How to optimize the minimax objective? \[\color{limegreen}{\sup_{u}} {\color{crimson}{\inf_{\substack{\theta \in \mathcal{C}_{N,\delta}\\ \omega\in[\underline\omega,\overline\omega]}}} \expectedvalue \left[\sum_{n=0}^\infty \gamma^n R(x(t_n)) \middle| \color{limegreen}{u}, \color{crimson}{f_{\theta}}, \color{crimson}{\omega}\right]}\]

Related work

• Robust Dynamic Programming (Iyengar, 2005)
  ⮕ finite $\mathcal{S}$
• Linear Quadratic Setting ⮕ continuous $\mathcal{S}$

• No assumption on dynamics $f$ or reward $R$
• Handle a single known dynamics

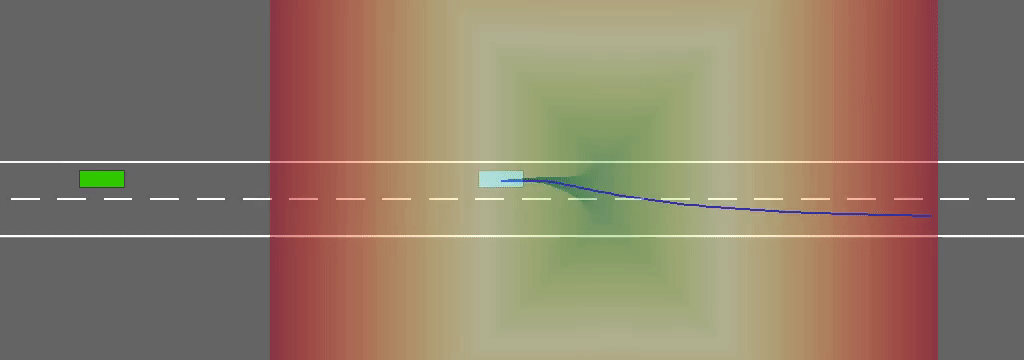

• Bound the set of reachable states under $\color{orange}{\theta\in\cC_{N,\delta}}$

Lemma (Efimov et al., 2012)
Given $\color{crimson}{\underline{A}\leq A(\theta)\leq\overline{A}}$ and $\color{lightskyblue}{\underline{x}(t)\leq x(t)\leq \overline{x}(t)}$, \[ \scriptsize \begin{aligned} \dot{\underline{x}}(t) = \color{crimson}{\underline{A}^{+}}\color{lightskyblue}{\underline{x}^{+}(t)} - \color{crimson}{\overline{A}^{+}}\color{lightskyblue}{\underline{x}^{-}(t)} - \color{crimson}{\underline{A}^{-}}\color{lightskyblue}{\overline{x}^{+}(t)} + \color{crimson}{\overline{A}^{-}}\color{lightskyblue}{\overline{x}^{-}(t)} +Bu(t) + D^{+}\underline{\omega}(t)-D^{-}\overline{\omega}(t),\\ \dot{\overline{x}}(t) = \color{crimson}{\overline{A}^{+}}\color{lightskyblue}{\overline{x}^{+}(t)} - \color{crimson}{\underline{A}^{+}}\color{lightskyblue}{\overline{x}^{-}(t)} - \color{crimson}{\overline{A}^{-}}\color{lightskyblue}{\underline{x}^{+}(t)} + \color{crimson}{\underline{A}^{-}}\color{lightskyblue}{\underline{x}^{-}(t)} +Bu(t) + D^{+}\overline{\omega}(t)-D^{-}\underline{\omega}(t), \end{aligned} \] ensures the inclusion property.

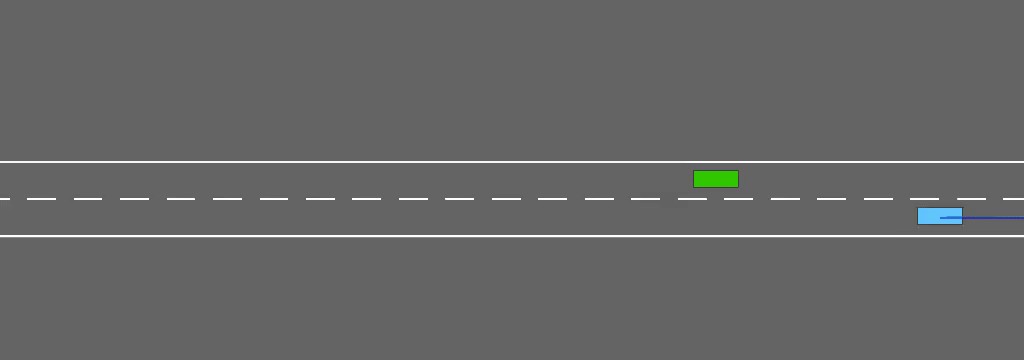

$\dot x(t) = -\color{orange}{\theta} x(t) + \omega(t), \quad\left\{\begin{array}{l} \small \color{orange}{\theta\in[1, 2]}\\ \small\omega(t) \in [-0.05, 0.05] \end{array}\right.$

Under polytopic uncertainty around $A_0$ Metzler \[A(\theta) = \color{orange}{A_0} + \sum_i\alpha_i\color{crimson}{\Delta A_i},\]

Theorem (CDC 2019) The predictor \[ \scriptsize \begin{aligned} \dot{\underline{x}}(t) & = \color{orange}{A_{0}}\underline{x}(t)-\color{crimson}{\Delta A_{+}}\underline{x}^{-}(t)-\color{crimson}{\Delta A_{-}}\overline{x}^{+}(t) +Bu(t)+D^{+}\underline{\omega}(t)-D^{-}\overline{\omega}(t),\\ \dot{\overline{x}}(t) & = \color{orange}{A_{0}}\overline{x}(t)+\color{crimson}{\Delta A_{+}}\overline{x}^{+}(t)+\color{crimson}{\Delta A_{-}}\underline{x}^{-}(t) +Bu(t)+D^{+}\overline{\omega}(t)-D^{-}\underline{\omega}(t), \\ \end{aligned} \] ensures the inclusion property.

Theorem (CDC 2019) If there exist diagonal matrices $P$, $Q$, $Q_{+}$, $Q_{-}$, $Z_{+}$, $Z_{-}$, $\Psi_{+}$, $\Psi_{-}$, $\Psi$, $\Gamma\in\Real^{2n\times2n}$ such that \[ \begin{aligned} \color{lightskyblue}{\Upsilon\preceq0},\;P+\min\{Z_{+},Z_{-}\}>0,\;\Gamma>0,\\ Q+\min\{Q_{+},Q_{-}\}+2\min\{\Psi_{+},\Psi_{-}\}>0, \end{aligned} \] where \[ \color{lightskyblue}{\Upsilon_{11}}=\mathcal{A}^{\top}P+P\mathcal{A}+Q,\;\color{lightskyblue}{\Upsilon_{12}}=\mathcal{A}^{\top}Z_{+}+PR_{+}+\Psi_{+},\\ \color{lightskyblue}{\Upsilon_{13}}=\mathcal{A}^{\top}Z_{-}+PR_{-}+\Psi_{-},\;\color{lightskyblue}{\Upsilon_{22}}=Z_{+}R_{+}+R_{+}^{\top}Z_{+}+Q_{+},\\ \color{lightskyblue}{\Upsilon_{23}}=Z_{+}R_{-}+R_{+}^{\top}Z_{-}+\Psi,\;\color{lightskyblue}{\Upsilon_{33}}=Z_{-}R_{-}+R_{-}^{\top}Z_{-}+Q_{-} \] then the predictor is input-to-state stable with the disturbance $\underline{\omega}$, $\overline{\omega}$.

Use the predicted intervals in a surrogate objective \[\small \color{orange}{\hat{V}^r(u)} = \sum_{n=N+1}^\infty \gamma^n \color{orange}{\min_{\color{lightskyblue}{\underline{x}(t_n)}\leq x \leq\color{lightskyblue}{\overline{x}(t_n)}} R(x)} \]

$$\dot{{x}}(t) = \left(\color{magenta}{A_0} + \sum_{i=1}^d{\theta_i}\color{magenta}{\phi_i}\right)x(t) + Bu(t) + D\omega(t)$$

Our statistical framework can test the adequacy of the model $\color{magenta}{(A_0,\phi)}$ with observations $x(t_0)$, $x(t_1),\dots$

Limitation of the robust approach

Model-free

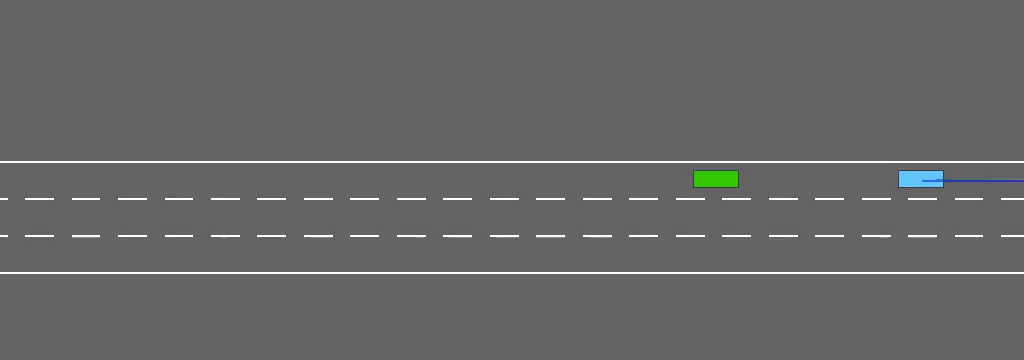

1. Considering Social Interactions

• (ML4AD at NeurIPS 2019)

\[Q(s,a) = \max_\pi \displaystyle\expectedvalue_{\pi}\left[\sum_{t=0}^\infty \gamma^t R(s_t, a_t) \middle| \substack{s_0=s\\a_0=a}\right]\]

• Fixed point of the Bellman operator $$\mathcal{T}:Q\rightarrow R + \gamma \expectedvalue_P [\max_a Q]$$
• Fixed-point iteration guaranteed to converge, provided sufficient coverage

💡 Fit a parametrized model $Q_\theta$

What is a good class of functions for behavioural planning?

Requirements:

1. Represent any number of vehicles
2. Invariance to permutations
3. Low-dimensional input

Model-free

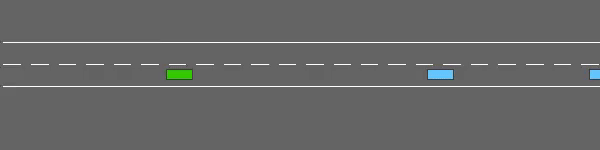

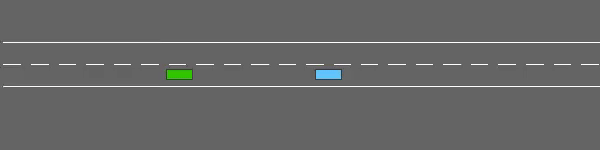

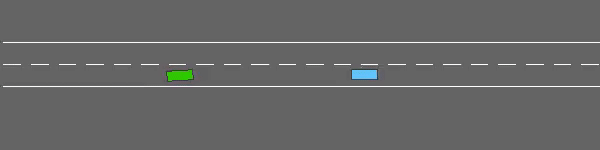

2. Acting under Adjustable Constraints

• (NeurIPS 2019)

• Dynamics $P$,
• Rewards $R$,
• Costs $C$,
• Budget $\beta$,

Objective

$\text{subject to }\,\expectedvalue_\pi\,\color{crimson}{\sum_t\gamma^t C_t} \leq \color{lightskyblue}{\beta}$ $\text{subject to }\,\color{crimson}{V_c^\pi}(s,\color{lightskyblue}{\beta})\leq \color{lightskyblue}{\beta}$

$\overline{Q}^\pi(s, a, $$\color{lightskyblue}{\underbrace{\beta}_{\substack{\text{risk}\\\text{budget}}}}$$) = ($$\color{limegreen}{\underbrace{Q_r^\pi}_{\substack{\text{expected}\\\text{reward}}}}$$,$$\color{crimson}{\underbrace{Q_c^\pi}_{\substack{\text{expected}\\\text{cost}}}}$$)$

Theorem (NeurIPS 2019) The optimal state-action value function verifies \[\color{lightskyblue}{\overline{Q}^\star}(\overline{s},\overline{a}) = \underbrace{\overline{R}(\overline{s}, \overline{a}) + \gamma \sum_{\overline{s}\in\overline{\mathcal{S}}}\overline{P}\left(\overline{s}'\middle| \overline{s},\overline{a}\right) \sum_{\overline{a}\in\overline{\mathcal{A}}} \color{orange}{\pi_{\text{g}}\left(\overline{a}'\middle| \overline{s}';\;\color{lightskyblue}{\overline{Q}^\star}\right)}\color{lightskyblue}{\overline{Q}^\star}(\overline{s}',\overline{a}')}_{\mathcal{T}\color{lightskyblue}{\overline{Q}^\star}(\overline{s},\overline{a})} \] where the greedy policy $\color{orange}{\pi_\text{g}}$ is \[ \begin{aligned} \color{orange}{\pi_\text{g}(\overline{a}|\overline{s}; Q)} \in &\mathop{\text{arg}\min}_{\rho\in\Pi_r^Q} \expectedvalue_{\overline{a}\sim\rho}Q_c(\overline{s}, \overline{a}), \\ \text{and }\quad \Pi_r^Q = &\mathop{\color{limegreen}{\text{arg}\max}}_{\rho\in\mathcal{M}(\overline{\mathcal{A}})} \expectedvalue_{\overline{a}\sim\rho} \color{limegreen}{Q_r(\overline{s}, \overline{a})} \\ & \text{ s.t. } \expectedvalue_{\overline{a}\sim\rho} \color{crimson}{Q_c(\overline{s}, \overline{a})} \color{lightskyblue}{\leq \beta} \end{aligned} \]

• We have $\color{lightskyblue}{\overline{Q}^\star} = \mathcal{T}\color{lightskyblue}{\overline{Q}^\star}$
• Apply $Q_{k+1}\gets\mathcal{T}Q_k$
• We cannot guarantee convergence of $Q_k$

Theorem (NeurIPS 2019) For any BMDP with $|\mathcal{A}|\geq 2$, $\mathcal{T}$ is not a contraction.

Theorem (NeurIPS 2019) $\mathcal{T}$ is a contraction on the subset \[\{\overline{Q}: ``\color{limegreen}{Q_r} \text{ is L-Lipschitz with respect to } \color{crimson}{Q_c}"\}\] with $L<1/\gamma - 1$.

• We guarantee convergence under (strong) assumptions
• We observe empirical convergence

1. Model-based
   • Build a confidence region around the true model
   • Propagate a stable interval predictor
   • Optimise with a pessimistic surrogate
   • Test the adequacy of multiple models


2. Model-free
   • Use self-attention for social interactions
   • Constrain the expected risk below a budget

• Model-based
  • Relax perfect perception
  • Relax linear dynamics
• Model-free
  • Exploit scene information
  • Exploration in continuous spaces
• Stronger evaluation process
• Get my driver's license
